1700 EXB
Back to list

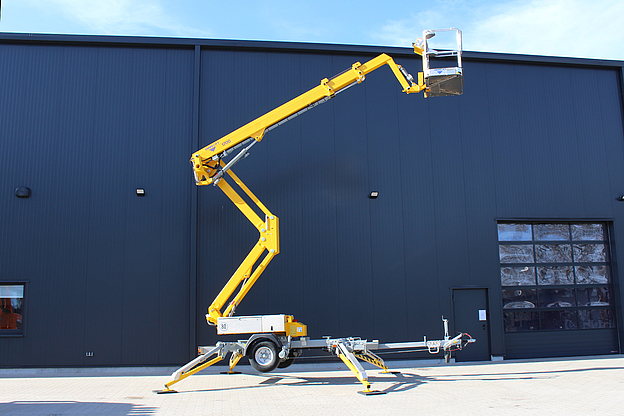

17 metre trailer platform with 200 kg basket load
The 1700 EXB is a trailer-mounted work platform from OMMELIFT, which is powered by four powerful batteries (24V/200 Ah/5h in total) and has a hydraulic drive, a rotating workman basket and hydraulic stabilisers, allowing the platform to be moved autonomously. The scissor system enables a long reach over obstacles, with the workman basket travelling vertically. It is controlled via a clearly laid out control panel and the proportional control ensures smooth and precise movements. The maximum basket load is 200 kg over the entire working area.
Product Details
| Type | Trailer-mounted work platforms |
|---|---|
| Manufacturer | Ommelift |
| Model | 1700 EXB |
| Condition | New equipment |
| Working Height | 16.80 m |
| Platform Height | 14.80 m |
| Lateral Range | 9.10 m |
| Weight | 2,200 kg |
| Lifting System | Articulated telescope |
| Basket Length | 1.25 m |
| Basket Width | 0.80 m |
| Transport Length | 6.25 m |
| Transport Width | 1.66 m |
| Transport Height | 1.99 m |
| Tower Range | 355° |
| Support Dimensions | 4,12 x 4,12 m |
| Engine | Battery |
